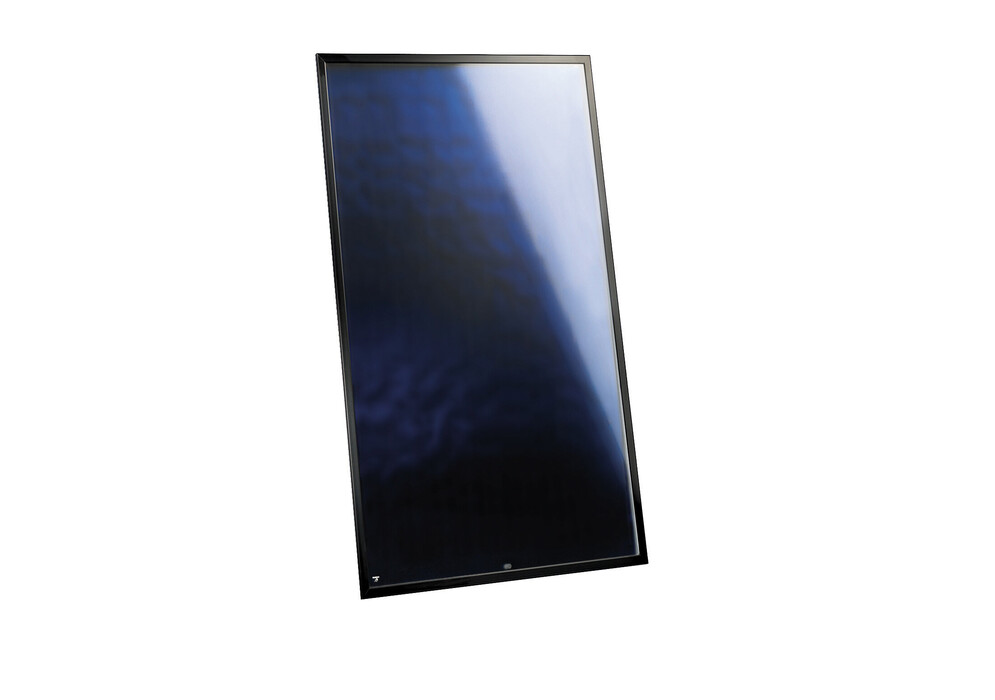

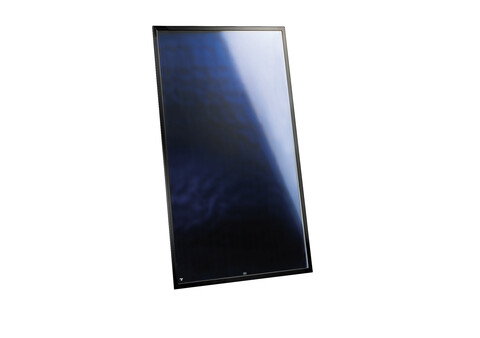

SUNeco solar panel
Flat plate collector for vertical installation with 1/2" male connectors, flat-sealing, 3.2 mm solar safety glass, glass edge and adhesive protected by aluminium glass trim all round in standard. Colour Anthracite. Omega ultrasound-welded, highly selective aluminium/copper full-surface absorber with Omega heat conducting plates to guarantee a highly efficient transfer of heat. This collector serves perfect value for money.
High-quality tray collector
- Aluminium / Copper absorber with Omega-heat-link
- excellent value for money
- only long lasting materials used
Available in two dimensions
- large panel: 2.400 x 1.155 x 91 mm
gross area: 2,8 m² - small panel: 1.785 x 1.155 x 91 mm
gross area: 2,1 m²
Technic and application
Why the structure of the collector should be important to you: because environmental influences such as wind, rain, dirt, UV radiation, snow loads and extreme variations in temperature are active on the collector over a period of decades. Depending on the situation on site the solar panel can be mounted stand-alone, in-roof or above the roof.
Collector tray - the 'foundation'
-
The panel casing has a tray form in order to be robust against wind, rain and other weather influences.
-
The high quality manufacturing process protects the inside of the collector for decades.
Absorber – the 'heart' of the collector
-
High-selective coated copper absorber with ultrasonic welded heat transfer medium pipe.
-
The floating absorber which is coated on both sides guarantees you the best energy yield.
The solar safety glass
-
3.2 mm low-iron, prism-structured solar safety glass.
-
Highest light transmission, impact and hail resistant.
Aluminium glass holding strip
-
Anodized special aluminium section.
-
No rubber seal, but a UV and weather-resistant aluminium strip provides protection for the glass edges.
Guarantees permanent adhesion between the glass and the tray.
Rear wall panel insulation
- 50 mm high temperature resistand insulation.
- The insualtion is tailored for solar thermal use in order to provide long term efficiency of the solar panel.
Ring-sealing joints
- 1/2” external thread with flat-faced gasket.
- The special metal gasket provides a big advantage regarding water tightness for the entire collector life time. The gasket is temperature resistant up to 450°C which is almost tripple times the temperature which is technically possible to achieve with the solar panel. That provides for plumbers a simple and fast montage of the solar panel.

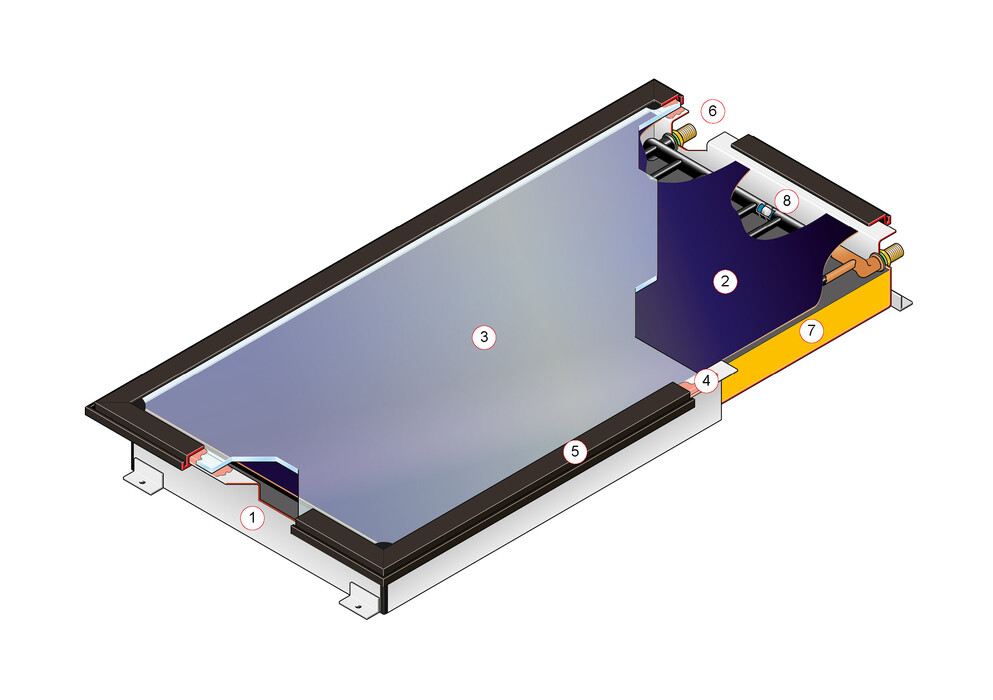

- Collector tray
- Absorber
- Solar safety glass
- Seal
- Glass protection profil
- flat sealed connections
- Insulation
- Tox-pinch
Free-standing installation
- Where there is insufficient space on the roof or adequate orientation is not possible
- 45° or 70° elevation possible
- For concrete foundations provided on-site
On-roof mounting, elevated
- 20°, 45° or 70° elevation possible
- Optimum for low roof pitch
- Also available for horizontal installation
Façade installation
- 45° or 70° elevation possible
- Wall installation at 90° available on request
- Horizontal installation for CPC-S1 and Sunny-28 only
